SKU:LH86WAFWLGCXUE
Warranty : Standard 3 Years
In stock

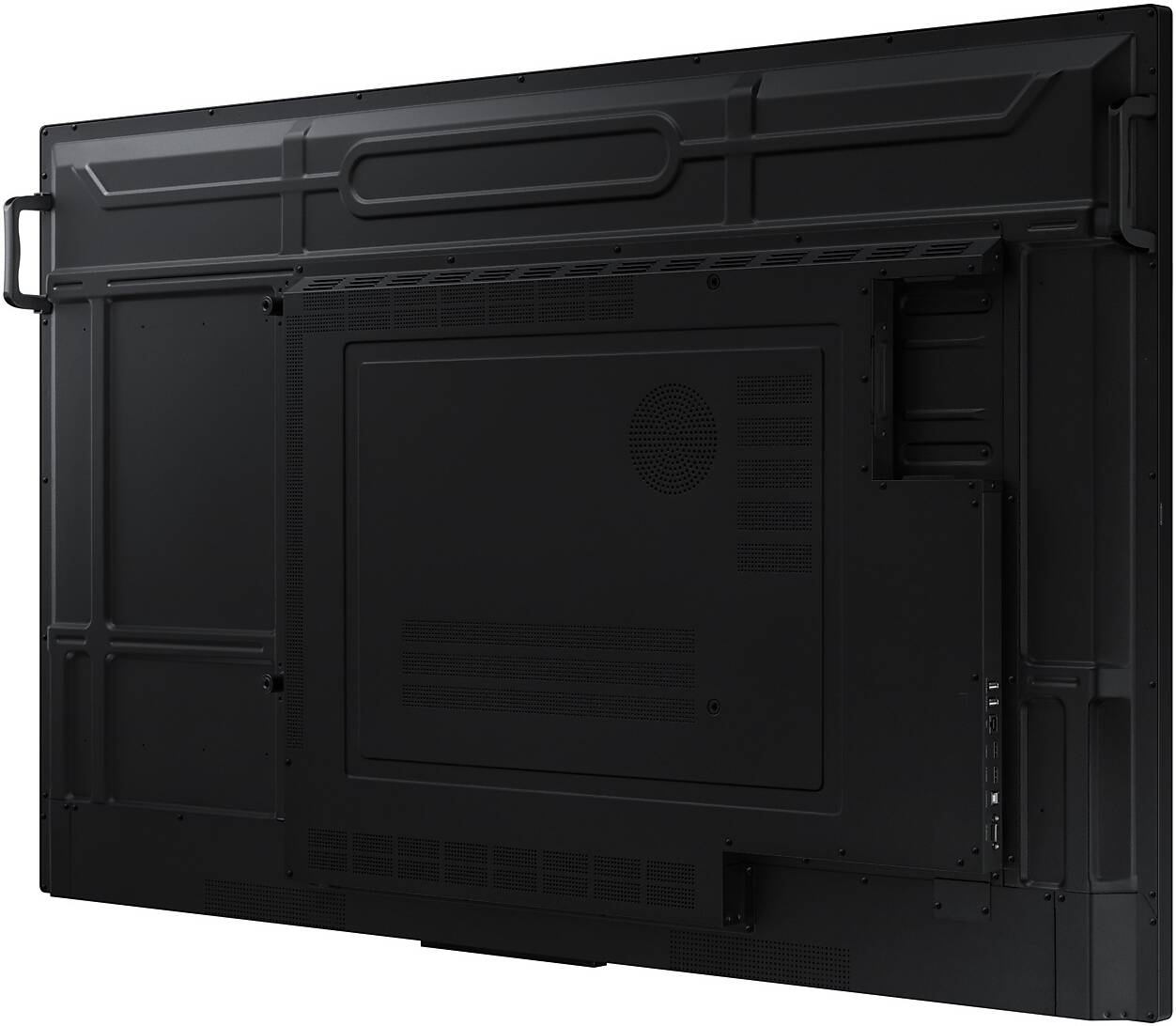

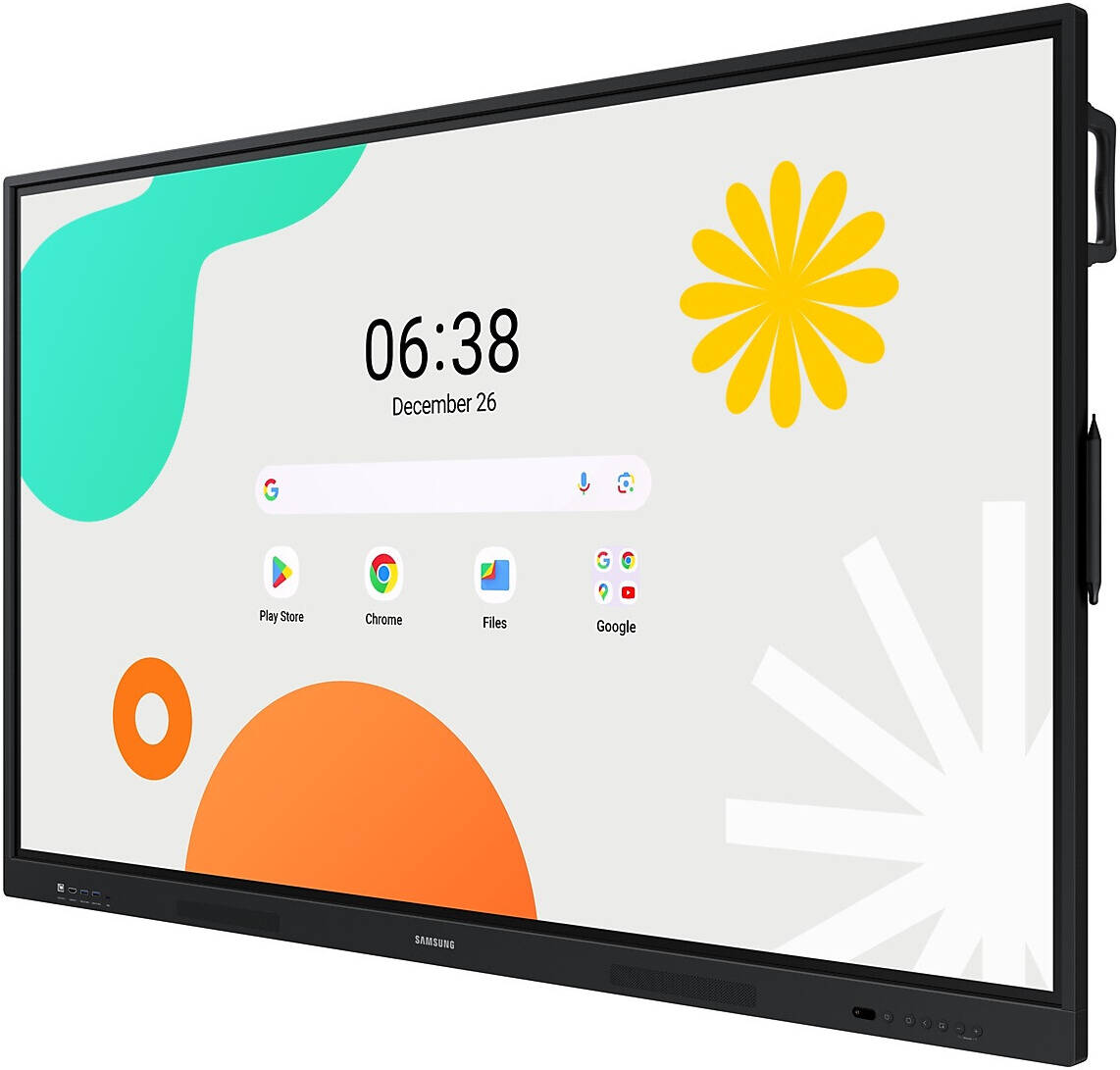

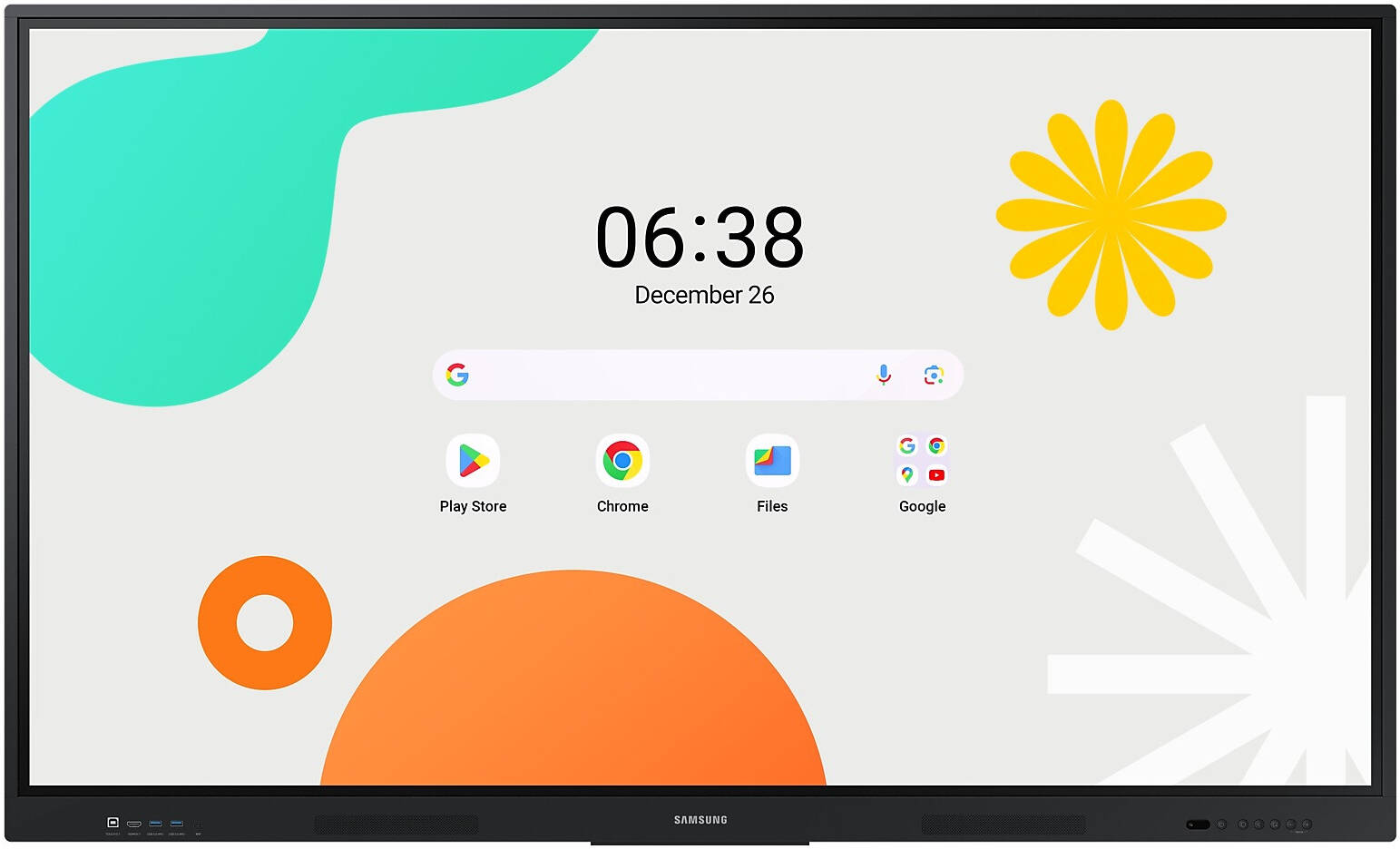

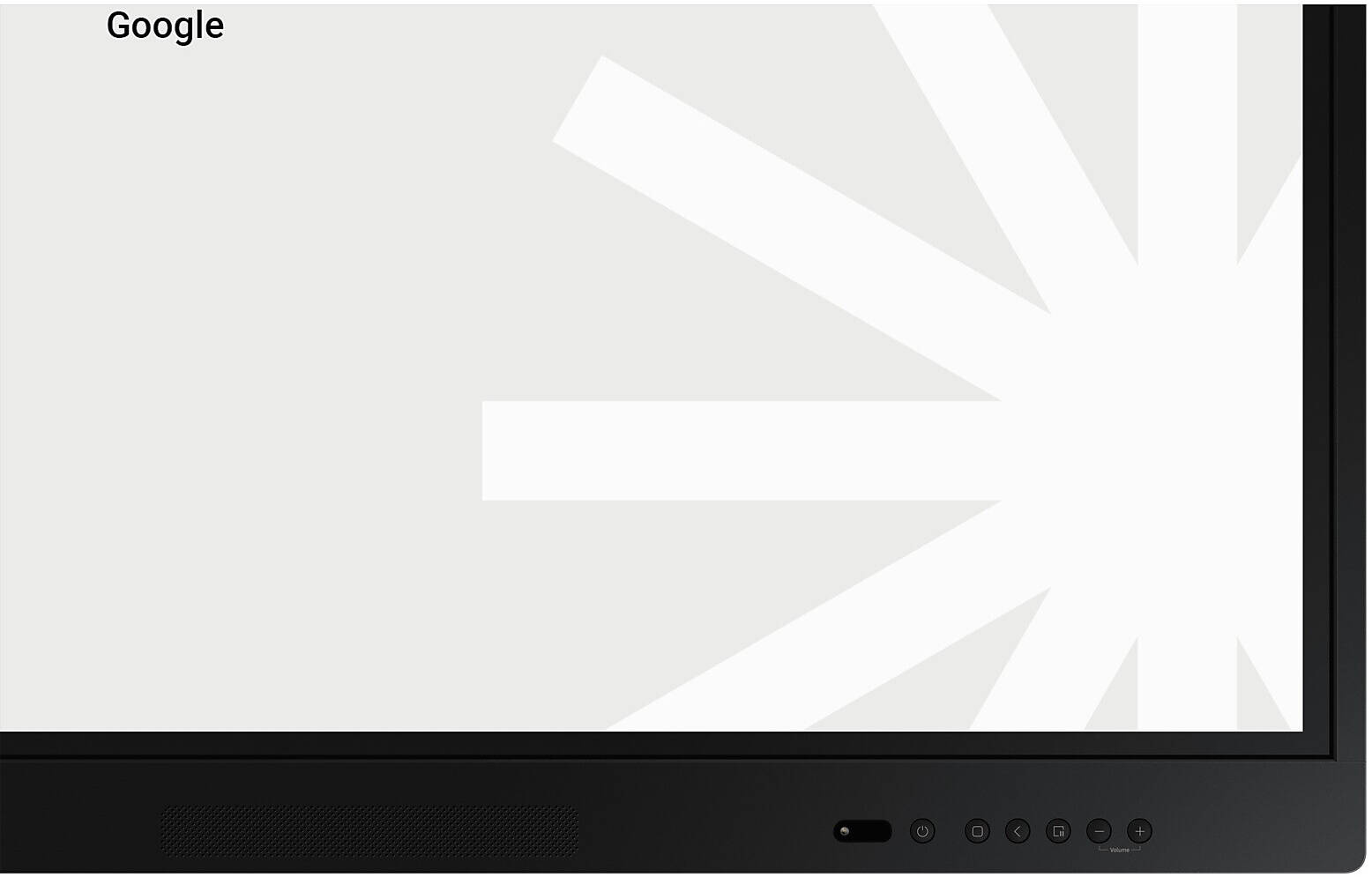

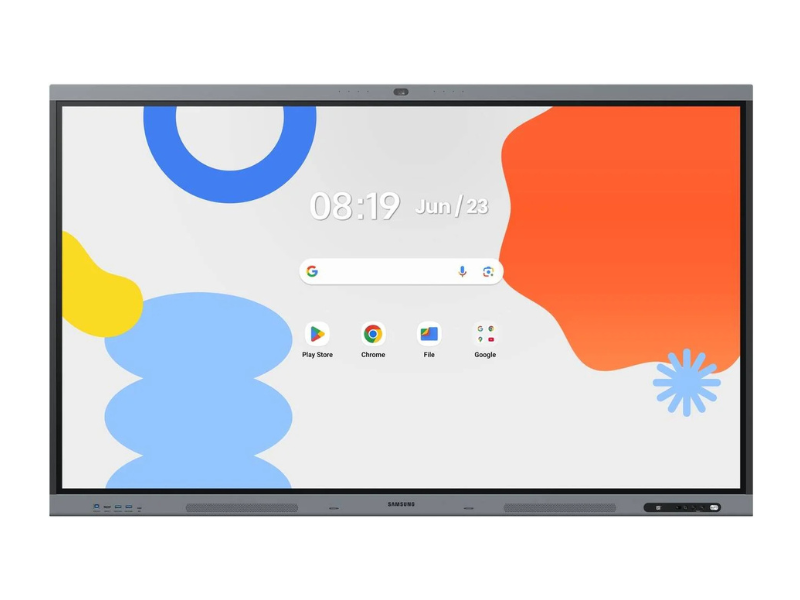

86" WAF Interactive Display
Specifications
| Display | |
| Diagonal Size | 86" |
| Panel Type | IPS |
| Resolution | 3,840 × 2,160 |
| Pixel Pitch (HxV) | 493.5 × 493.5 mm |
| Brightness (Typ) | 400 nit |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Color Gamut | 72% |
| Glass Haze | 25% |
| H-Scanning Frequency | 135 kHz |
| Maximum Pixel Frequency | 78 MHz |
| V-Scanning Frequency | 60 Hz |
| Operation Time Support | 12/7 |

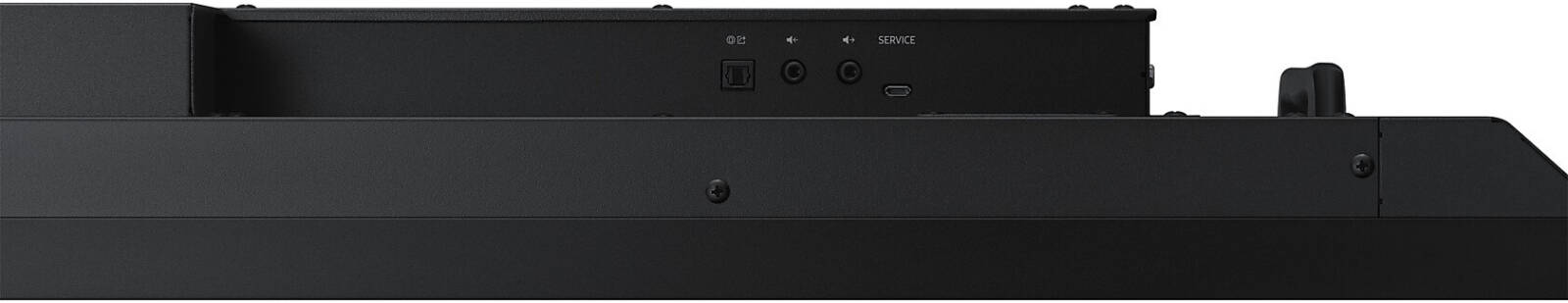

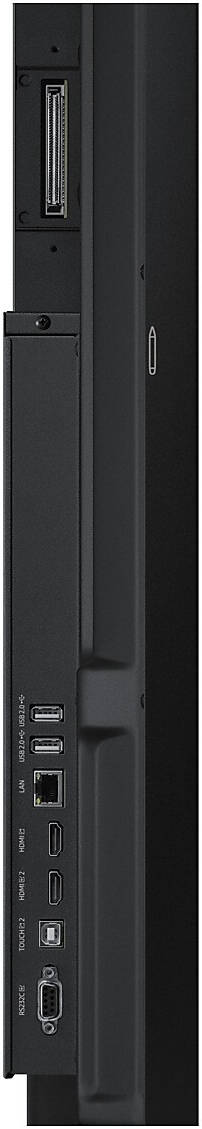

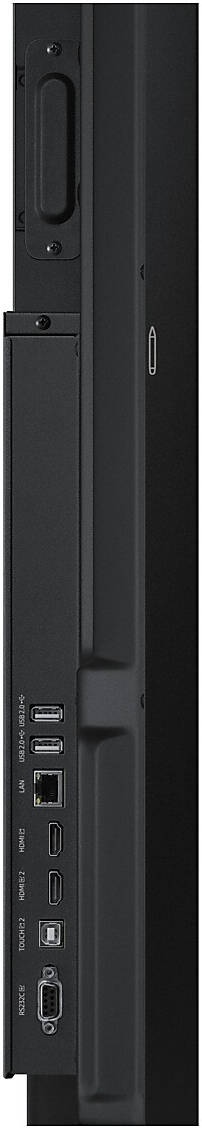

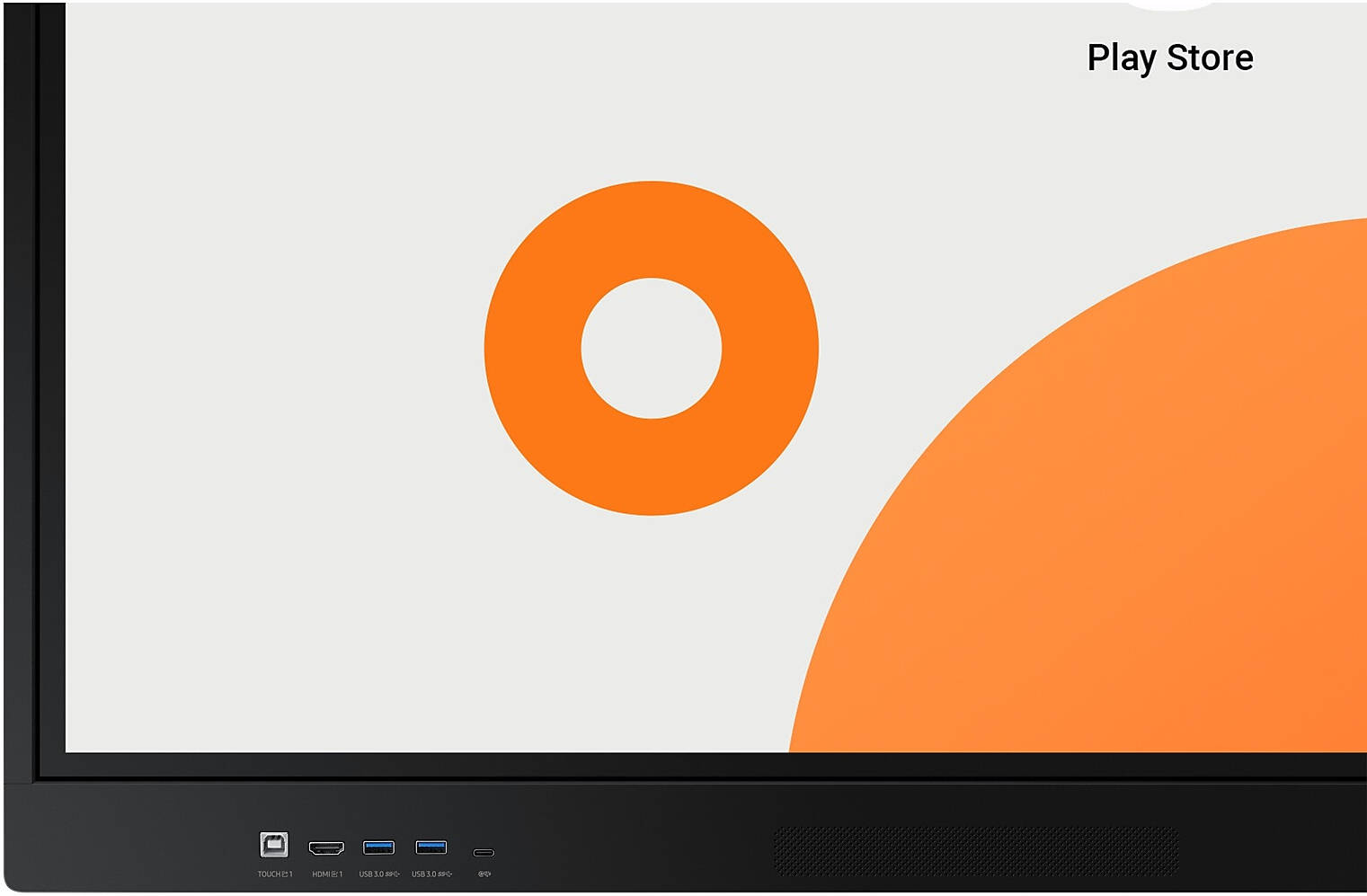

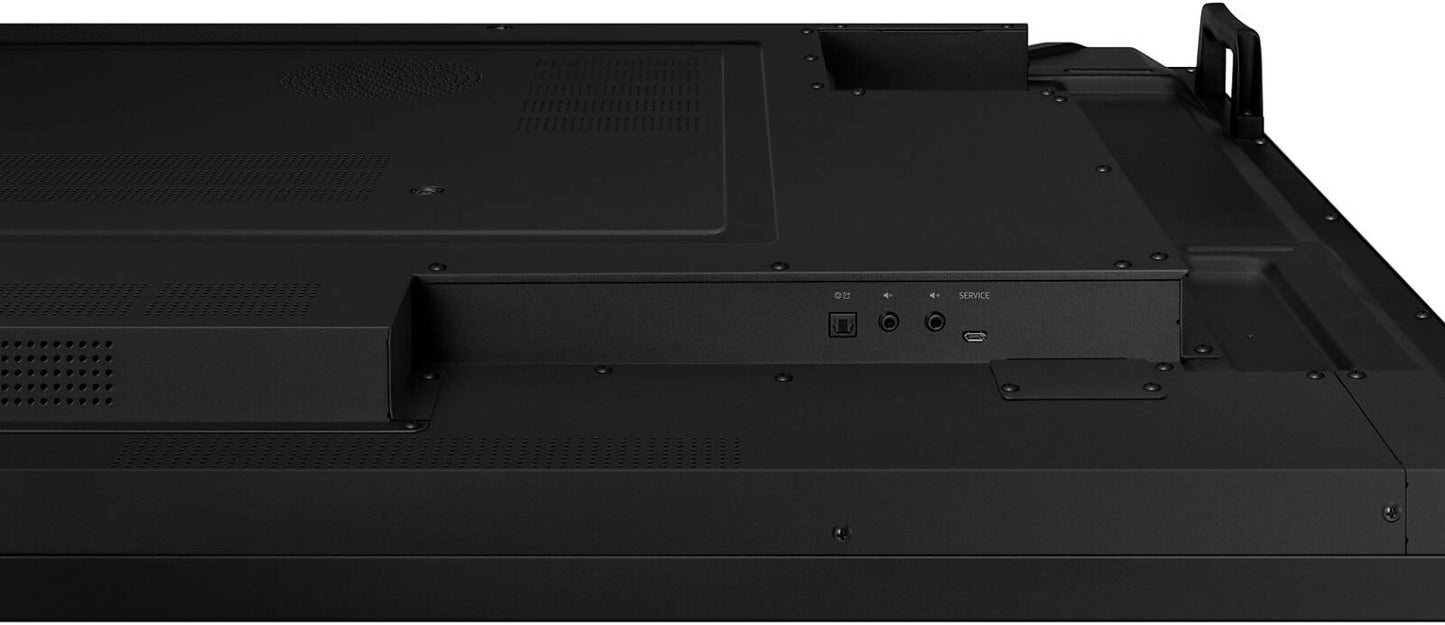

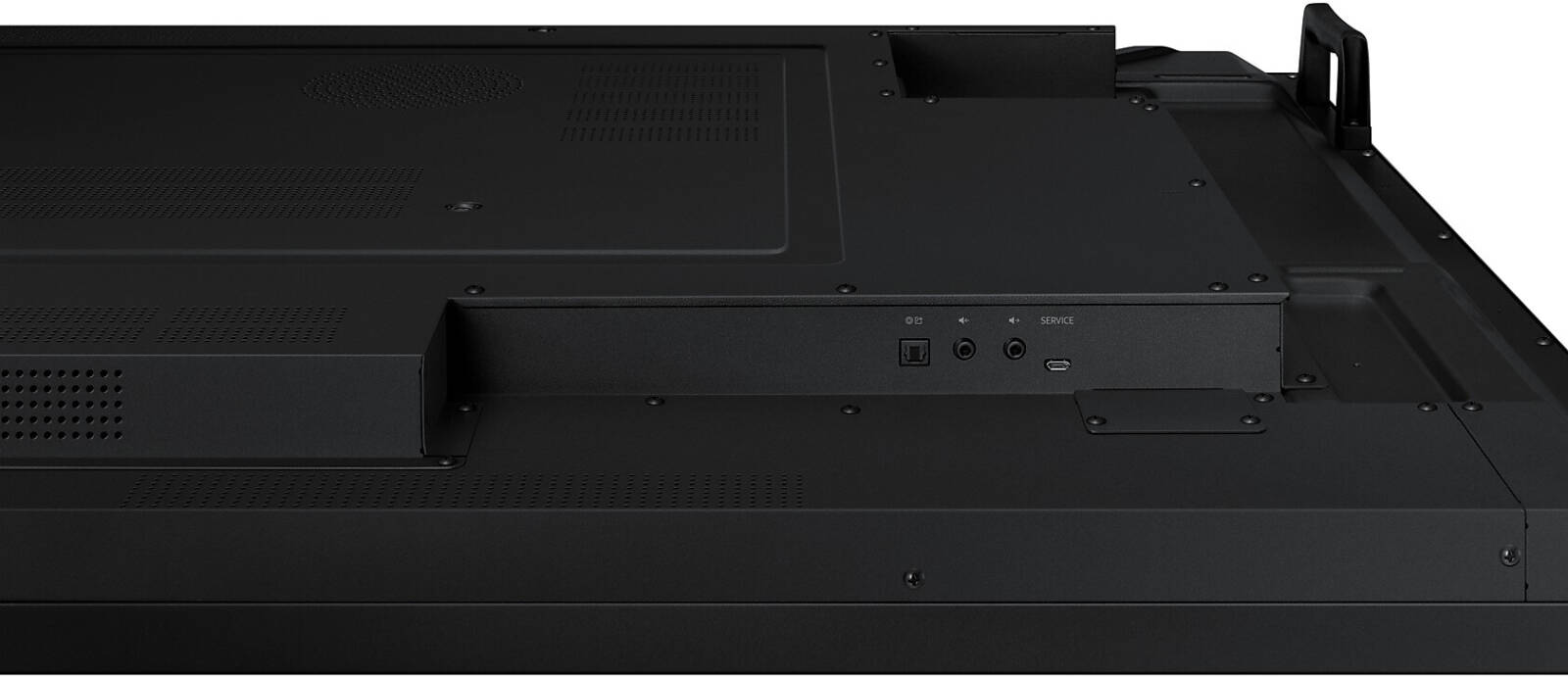

| Connectivity | |
| HDMI In | 2 ports |
| HDMI Version | 2.1 |
| HDCP Version | 2.1 |
| USB | 4 ports |
| Audio In | Stereo Mini Jack |
| Audio Out | Stereo Mini Jack |
| Video Out | Yes |
| RS232 In | Yes |
| RJ45 In | Yes |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC100–240V, 50/60Hz |
| Power Consumption (On) | 493 W |
| Power Consumption (Sleep) | 0.5 W |
| Dimensions | |
| Set Dimensions (W×H×D) | 1961.8 × 1170 × 87.7 mm |
| Package Dimensions (W×H×D) | 2095 × 1265 × 185 mm |
| Weight | |
| Set Weight | 62.5 kg |
| Package Weight | 74.1 kg |
| Operation Conditions | |
| Operating Temperature | 0°C ~ +40°C |
| Operating Humidity | 10% ~ 80%, non-condensing |
| Mechanical Specification | |

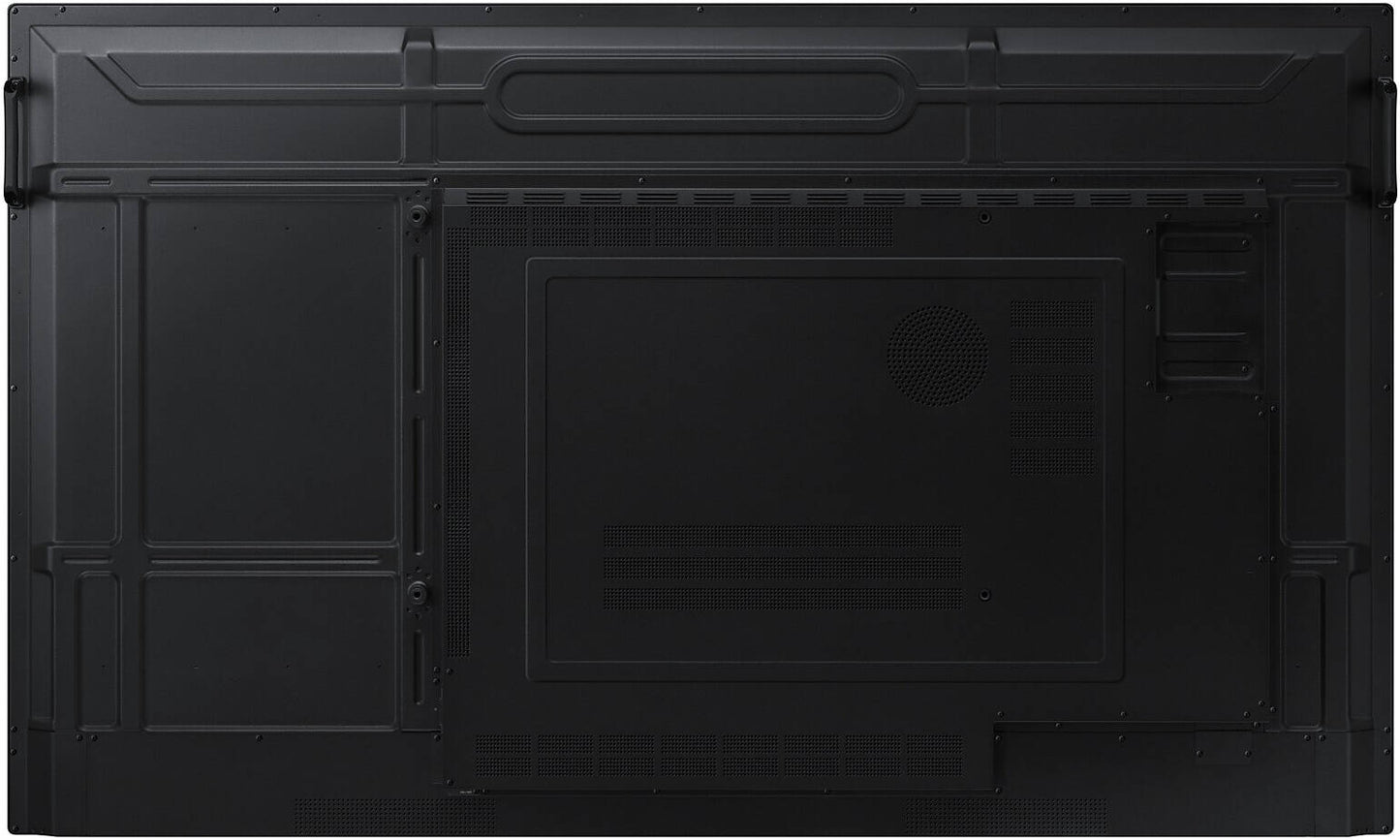

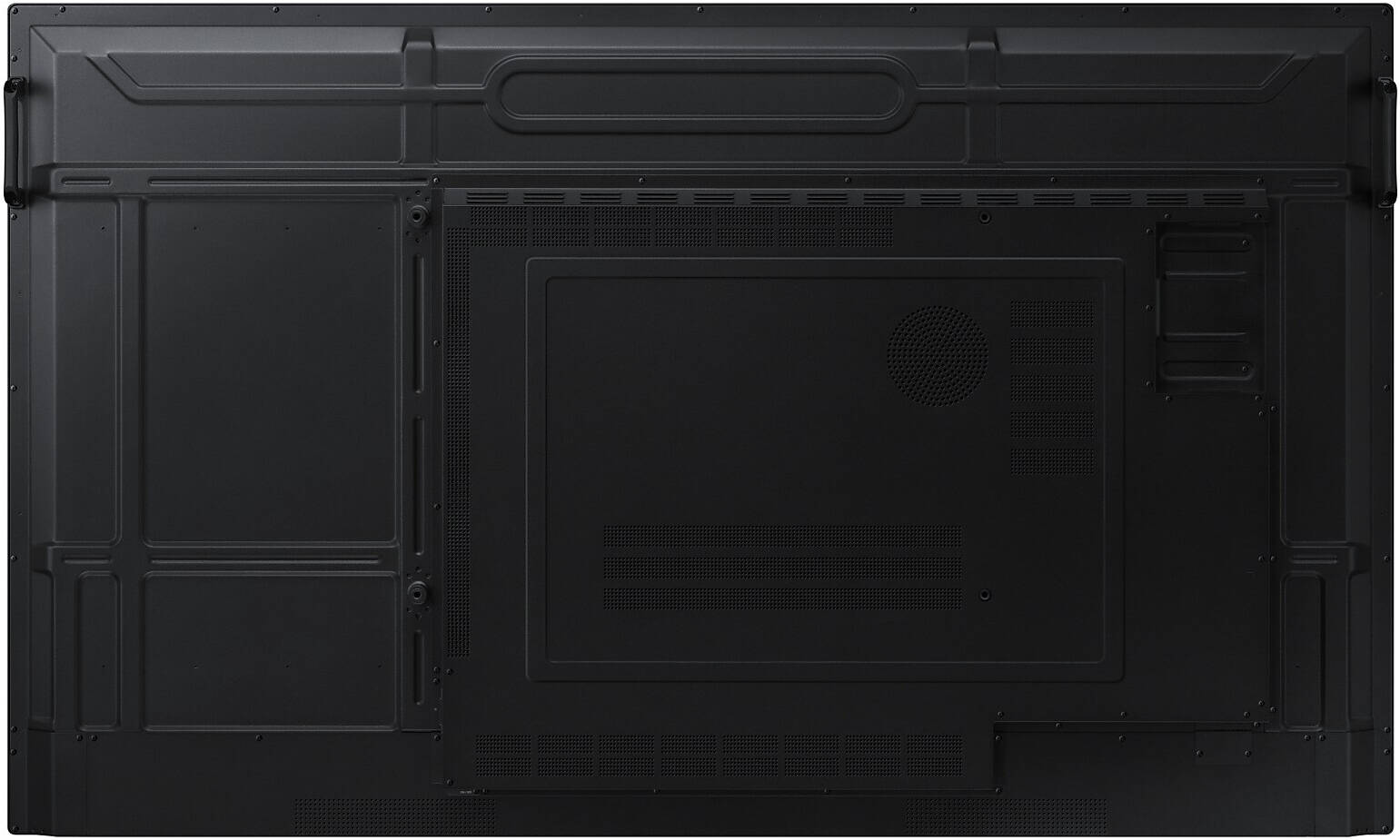

| VESA Mount | 800 × 600 mm |
| Bezel Width | 17.2 mm |
| Bezel Color | Black |
| Frame Material | Aluminium |
| Optional Features | |
| Touch Support | Yes |
| SoC | |
| OS Version | Android 14 |
| Flash Memory Size | 64 GB |
| Touch Technology | IR |
| Certification & Compliance | |
| EMC | FCC CFR Title 47, Part 15, Subpart B / EN55032:2015 + A11:2020 |
| Safety | IEC62368-1 / UL62368-1 / IEC60950-1 / IS13252 |
