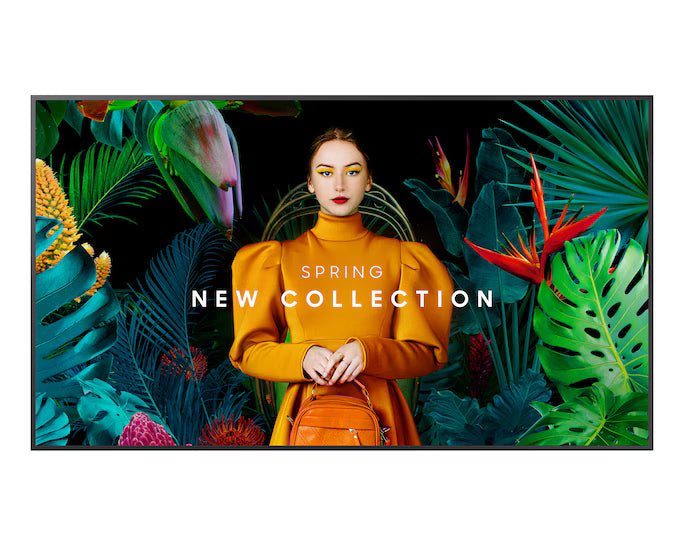

Crystal Signage QMC
Key Features
Specifications
| Display | |
| Diagonal Size | 55" |
| Panel Type | VA |
| Resolution | 3,840 x 2,160 |
| Pixel Pitch (HxV, mm) | 0.315x0.315mm |
| Brightness (Typ) | 500 nit |
| Contrast Ratio | 4,000:1 |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 8ms |
| Color Gamut | 72% (NTSC) |
| Glass Haze | 25% |
| H-Scanning Frequency | 30~81kHz |
| Maximum Pixel Frequency | 594MHz |
| V-Scanning Frequency | 48~75Hz |
| Contrast Ratio (Dynamic) | Mega |
| Operation Time Support | 24/7 |

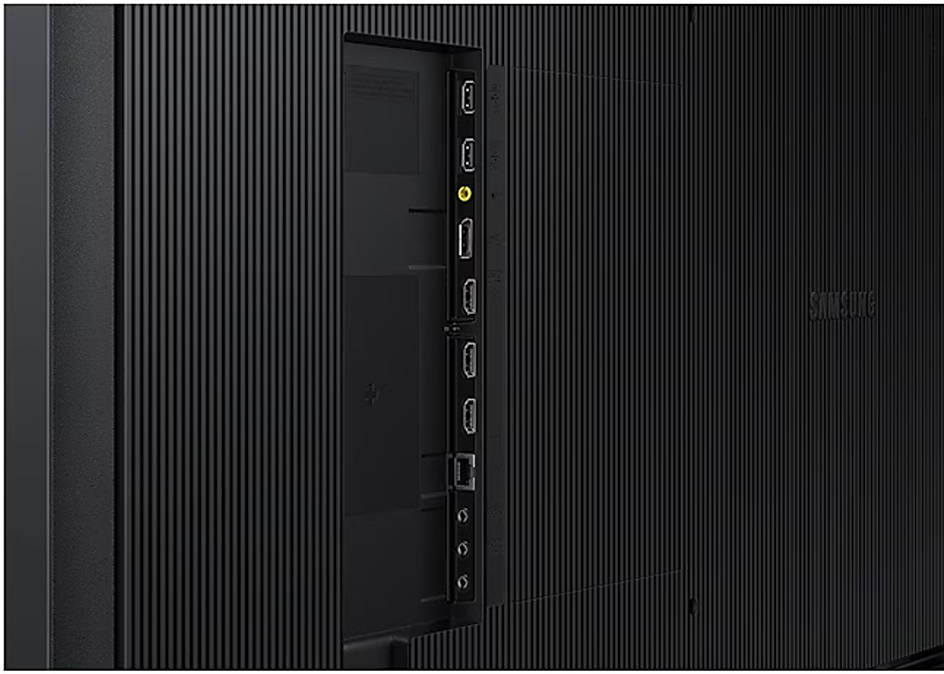

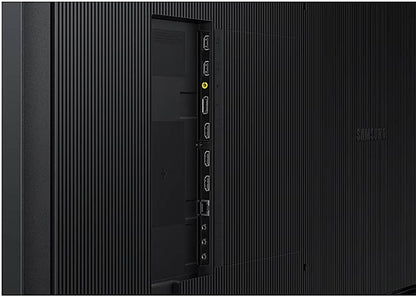

| Connectivity | |
| HDMI In | 3 |
| DP In | 1 |
| Version of HDMI | 2 |
| Version of DP | 1.2 |
| Version of HDCP | 2.2 |
| USB | 2 |
| IR In | Yes |
| Audio In | No |
| Audio Out | Stereo Mini Jack |
| RS232 In | Yes |
| RS232 Out | Yes |
| RJ45 In | Yes |
| WiFi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (On Mode, W) | 154 |
| Power Consumption (Sleep Mode, W) | 0.5 |
| Dimension Dimension | |
| Set Dimension (WxHxD, mm) | 1237.9 x 708.8 x 28.5 |
| Package Dimension (WxHxD, mm) | 1403 x 835 x 148 |
| Weight | |
| Set Weight (kg) | 15.7 |
| Package Weight | 19.9 kg |
| Operation Conditions | |
| Temperature | 0℃~ 40 ℃ |
| Humidity | 10 ~ 80%, non-condensing |
| Mechanical Specification | |
| VESA Mount (mm) | 200 x 200 |
| Bezel Width (mm) | 11.5mm (even) |
| Frame Material | Non-Glossy |
| Optional Feature | |
| Mount | WMN-B50SC |
| Stand | STN-L4355C |
| SoC | |
| OS Version | Tizen 7.0 |
| Flash Memory Size | 16GB |
| Eco | |
| Energy Efficiency Class | A |
| Certification and Compliance | |
| EMC | Class B |
| Safety | 60950-1, 62368-1 |

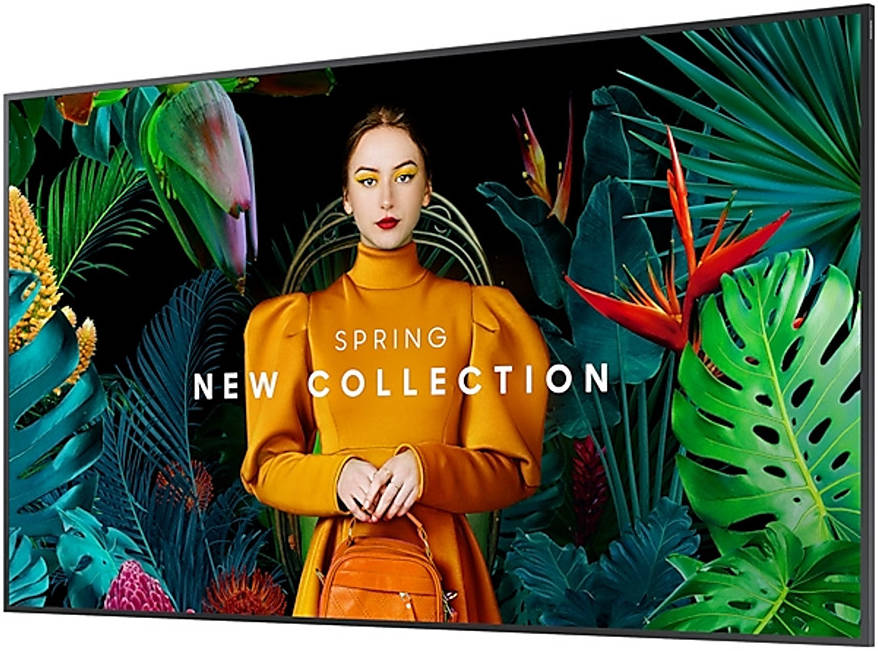

The QMC's unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment. QMC optimizes space with its sleek design that blends seamlessly into your business.
Introducing QMC, the slimmest display in the Samsung UHD Signage. It brings elegance to business while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QMC’s efficiency and design innovation.

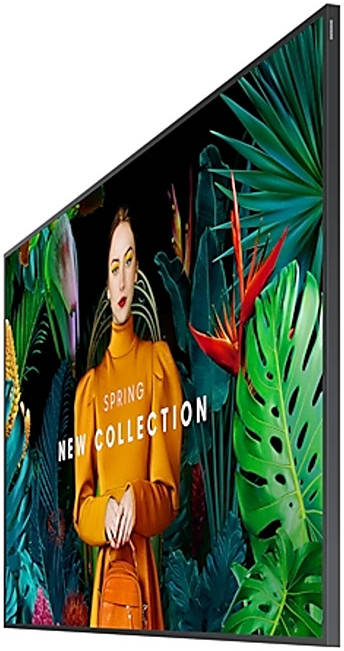

The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.
* When compared to Samsung’s FHD model
** Viewing experience may vary according to types of content and format
QMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in critical locations, like airports and train stations.
QMC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can now enable the screen sharing function at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colors required.
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.
* VXT CMS must be purchased separately.
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life. As a result, QMC series has earned a series of certifications for environmentally preferable products from highly recognized institutes in Germany and the U.S.
* QMC series has earned an ENERGY STAR 8.0 certification from the Environmental Protection Agency for its energy efficiency and an Electronic Product Environmental Assessment Tool (EPEAT) certification in recognition of its eco-conscious efforts, such as its recycled plastic use. Also, QMC series is the first signage models to receive a product carbon footprint certification from TÜV Rheinland, a global testing body.
** TÜV Rheinland was established in 1872 and headquartered in Cologne, Germany, TÜV Rheinland provides quality and safety certification services to multiple industries.The organization calculates its carbon footprint certification by evaluating the amount of greenhouse gases generated throughout the entire product lifecycle, ranging from production to disposal, based on internationally recognized standards.
*** The certification status of TÜV Rheinland Carbon Footprint may vary depending on the inch.
