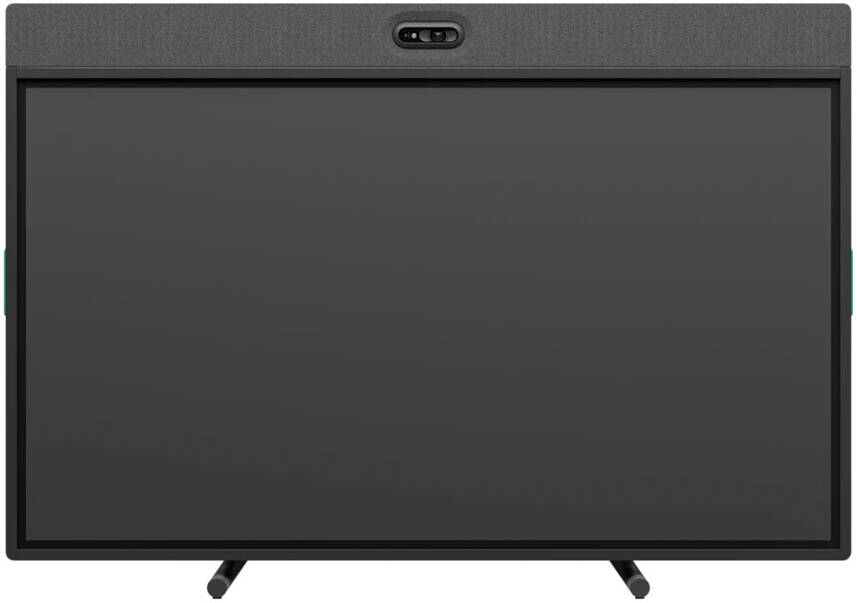

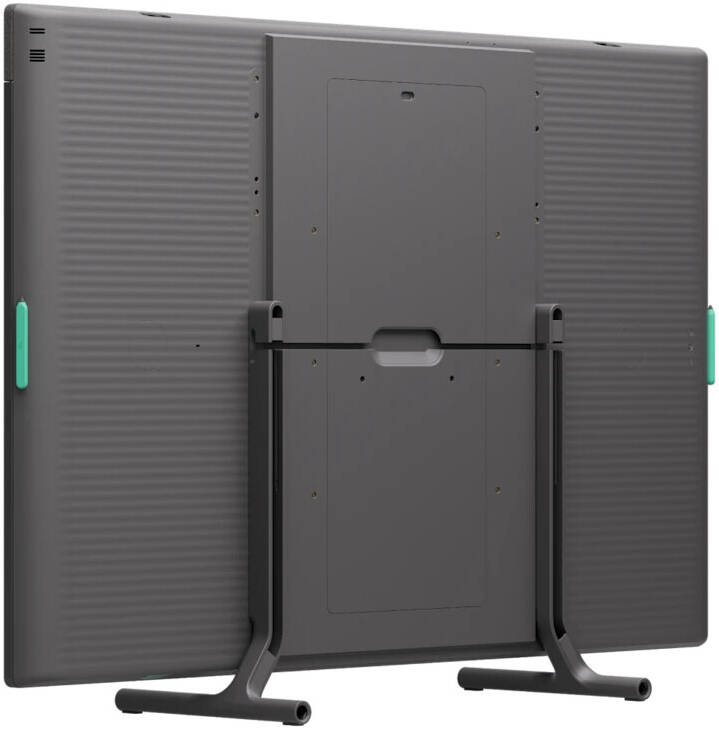

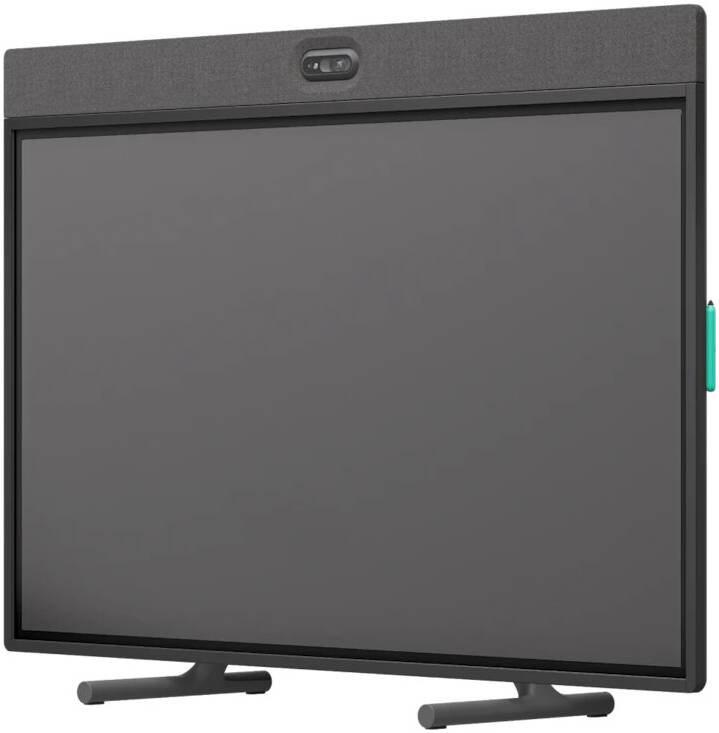

Rally Board 65
Rally Board 65 simplifies video conferencing with an extremely easy-to-deploy, all-in-one collaboration device that combines powerful audio and video with a 65-inch touchscreen display.
Specifications
| General | Built-in components: Front microphone array, digital PTZ camera, dual full-range ported speakers, dual tweeters, ultrasonic emitter, cable management & retention system, integrated motorized privacy shutter, depth mapping camera, radar motion sensing, environmental sensors |
| Support for 2nd display, up to UHD 4K60 (3840 × 2160) | |
| Automatic motorized privacy shutter | |
| HDMI ingest at up to 4K60 (3840 × 2160) | |
| Network Protocols: IPv4, IPv6 | |
| Proxy Support: IP-based, FQDN-based, PAC file | |
| System Requirements | 100-240V |
| Internet connection: Wired or wireless | |
| Room solution software license (not included) | |
| Display | 65-inch LCD screen |
| IR-based touch with 20 points of touch | |
| Resolution: UHD 4K (3840 × 2160) | |
| Aspect Ratio: 16:9 | |
| Anti-glare & Anti-fingerprint coating | |
| Contrast Ratio: 5000:1 (Typical) | |
| Brightness: 400 nits (Typical) | |
| Camera (Main) | Imaging Sensor: 1-inch, 20.3MP |
| Supported Resolutions: 4K, 1440p, 1080p, 900p, 720p, SD @ 30fps | |
| Auto motorized tilt (orientation-based) | |
| Zoom: 4× HD Digital | |
| Distortion-corrected Field of View: Diagonal 115.7°, Horizontal 103.3°, Vertical 60.7° | |
| Camera (Depth Mapping) | Diagonal FOV: 145° |
| Horizontal FOV: 121° | |
| Speakers (Full-Range) | Dual full-range ported speakers |
| Driver: 0.08 × 2.76 in (2 × 70 mm) | |
| Sensitivity: 89 dB SPL @ 1W/0.5m | |
| Rated Power: 8W | |
| Speakers (Tweeters) | Dual high-frequency tweeters |
| Driver: 0.08 × 1.22 in (2 × 31 mm) | |
| Sensitivity: 93 dB SPL @ 1W/0.5m | |
| Rated Power: 8W | |
| Microphones | Front microphone array |
| Frequency Response: 90Hz–16kHz | |
| Sensitivity: –36 dB FS ±1 dB @ 1Pa | |
| Output: 48kHz | |
| Pickup Range: Up to 23 ft (7 m) | |
| RightSound 2: AI speech enhancement, beamforming with AI beam selection, AI speech detection, AI direction of speech, echo cancellation & suppression | |
| Sensors | Temperature, Humidity, tVOC, CO₂, PM2.5, PM10, Radar, Ambient light |
| Interfaces | 1 × HDMI Out (up to 4K60) |
| 1 × HDMI In (up to 4K60) | |
| USB-A: 3 × USB 3.1 | |
| USB-C: 1 × USB 3.1 Type-C with DP Alt Mode | |
| Line-Out: 3.5 mm line-level | |
| Network: 10/100/1G Ethernet | |
| Wi-Fi: 802.11 a/b/g/n/ac/ax | |
| Bluetooth Low Energy | |
| EXT: RJ45 (reserved for future use) | |
| Power & Cables | Built-in auto-sensing 100–240V |
| AC Cable: 9.84 ft (3 m) | |
| Environmental | Operating Temp: 0–35 °C |
| Storage Temp: –40–60 °C | |
| Humidity: 10–95% | |
| Security | File-based Encryption: AES-256 |
| Data Encryption: Symmetric Keys, PKI | |
| Device Identity: Protected by device attestation | |
| Device Access: Authenticated via API | |
| Key Protection: Arm TrustZone, RPMB | |
| Accessories | Rally Board 65 Cart, Active USB Cable |
