With Logitech Extend, anyone can walk into an Android or BYOD-based meeting room, plug in with the USB-C cable, and launch a meeting from their laptop or mobile device.
Specifications
Product ID: 952-000199

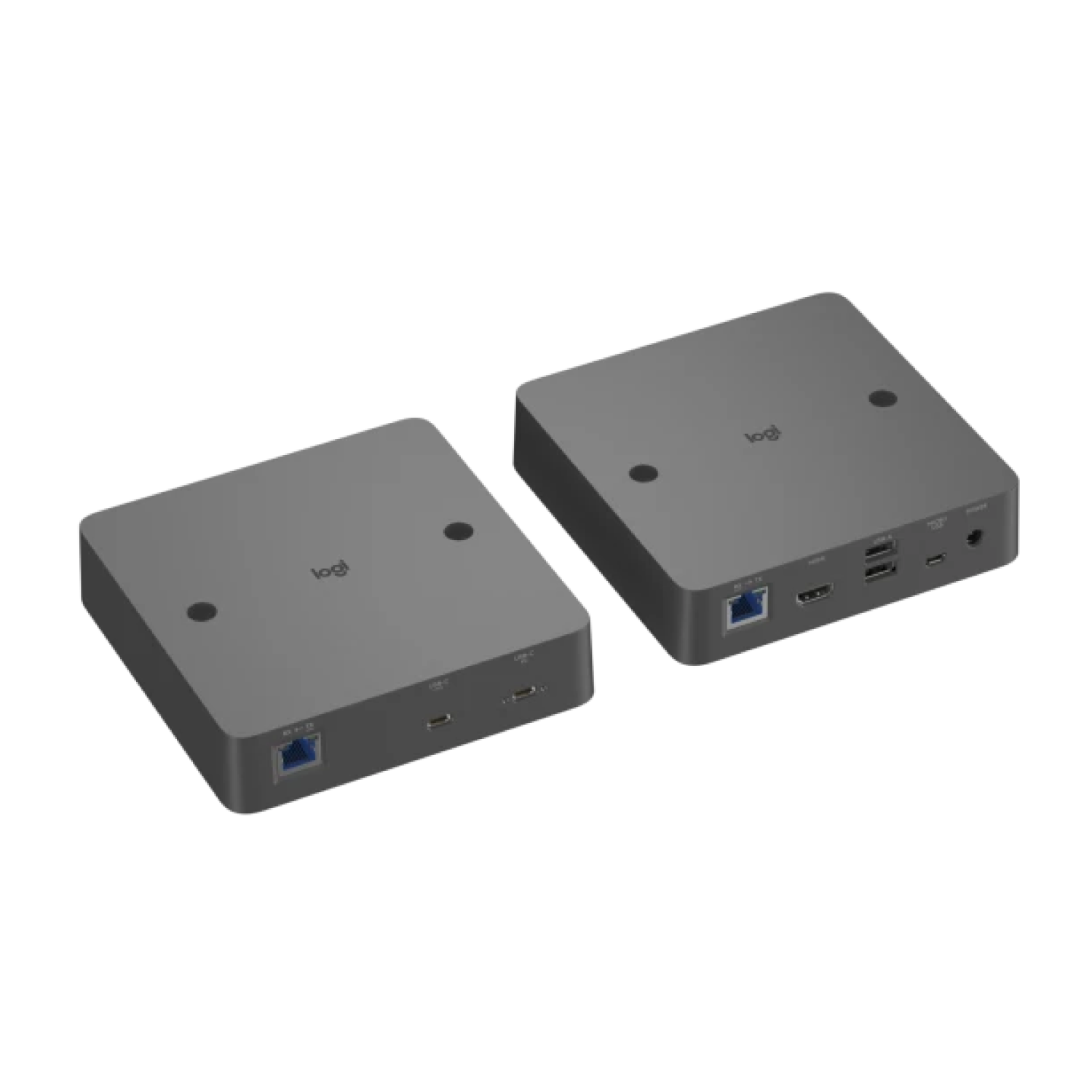

Display Side Box
Height: 143 mm
Width: 143 mm
Depth: 34.5 mm
Table Side Box
Height: 143 mm
Width: 143 mm
Depth: 34.5 mm
Display Side (RX)
HDMI 2.0 4K60 4:4:4
2x USB 2.0 Type A
Micro USB Management Interface
Logitech Extend Power
RJ45 to Table Side (TX)
Table Side (TX)
Secured USB-C (from TX to user laptop)
USB-C (optional USB-C power supply connection)
RJ45 to Display Side (RX)
Power and Cables
Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 48V, 0.5A
Power Supply Dimensions: 73.5 mm x 53 mm x 35 mm
DC Cable: 1.5 m

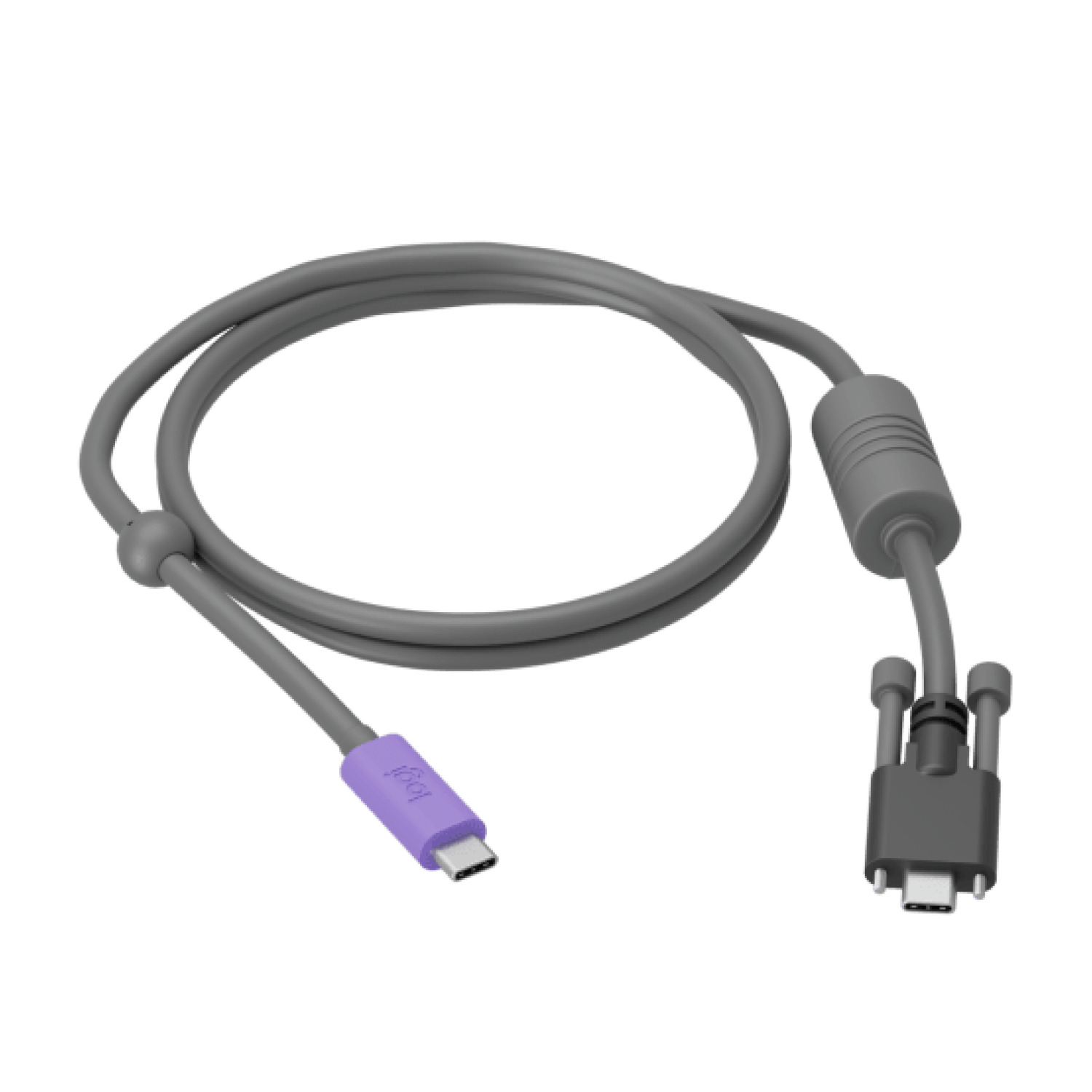

USB-C to USB-C 3.2 Gen 1 Cable: 1.5 m
USB A to Micro USB Cable: 1 m
